JDWY01-001-006 2 Inch Thick Film (3,4)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤120arcsec(102) ≤450arcsec

Name: JDWY01-001-006 2 Inch Thick Film (3,4)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤120arcsec(102) ≤450arcsec
Brand: Shanghai GaNova Electronic Information Co., Ltd.
SKU: JDWY01-001-006
Price: 1,000.00 USD
Availability: InStock

All Products

GaN Epitaxial Wafer
(65)

SiC Epitaxial Wafer
(39)

GaAs Epi Wafer
(15)

CVD Diamond Substrates
(15)

Rapid Thermal Annealing System
(2)

Hall Effect Sensor Tester
(3)

Aluminum Nitride Wafer
(21)

Laser Diode Chip
(10)

Silicon Carbide Crystal
(12)

Ga2O3 Wafer
(13)

Silicon Wafer
(26)

Sapphire Wafer
(19)

Patterned Sapphire Substrates
(10)

Wafer Holder
(1)

Wafer Dicing Machine
(5)

Certification

I'm Online Chat Now

JDWY01-001-006 2 Inch Thick Film (3,4)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤120arcsec(102) ≤450arcsec

Large Image : JDWY01-001-006 2 Inch Thick Film (3,4)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤120arcsec(102) ≤450arcsec

Product Details:

Place of Origin:	Suzhou China
Brand Name:	GaNova
Certification:	UKAS/ISO9001:2015
Model Number:	JDWY01-001-006

Payment & Shipping Terms:

Packaging Details:	Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Payment Terms:	T/T

Contact Now

JDWY01-001-006 2 Inch Thick Film (3,4)Um AIN On Sapphire Wafer,DSP,XRD FWHM Of(002)≤120arcsec(102) ≤450arcsec

Description

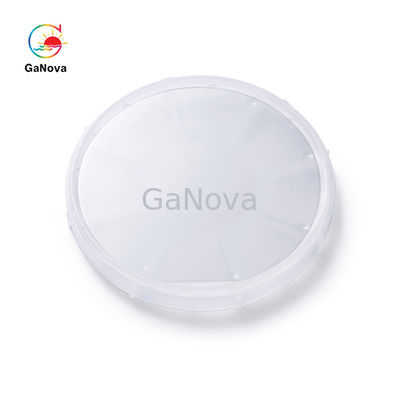

Dimensions:	φ50.8 Mm±0.1 Mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 Mm	Substrate:	Sapphire(Single Or Double Side Polished)
Thickness:	[1,2)μm,[2,3)μm,[3,4)μm,[4,5)μm	Edge Exclusion Zone:	<2mm
Surface Roughness:	Ra<1.5nm(10*10μm)	Product Name:	Aluminum Nitride Wafer
XRD FWHM Of(002):	≤80arcsec, ≤100arcsec, ≤120arcsec, ≤160arcsec	XRD FWHM Of(102):	≤650arcsec, ≤550arcsec, ≤450arcsec, ≤400arcsec
Highlight:	DSP AIN On Sapphire Wafer

2 inch thick film (3,4)um AIN on sapphire wafer,DSP,XRD FWHM of(002)≤120arcsec(102) ≤450arcsec UV disinfection, LED chip

AlN substrate is one of the most popular ceramic substrate which has excellent heat resistance, high mechnical strength , abrasion resistance and small dielectric loss . The surface of AlN substrate is quite smooth and low porosity . Aluminium Nitride has higher thermal conductivity , compared to alumina substrate , It is about 7 to 8 times high . AlN substrate is an excellent electronic package material .

Item	AlN-T-C-U-C50
Dimensions	φ50.8 mm±0.1 mm,OF(1-100),Al Face,Locating Edge 16.0± 1.0 mm
Substrate	Sapphire(Single or Double Side Polished)
Thickness	1~5μm
Orientation	C-plane (0001)±1^o
Conduction Type	Semi-Insulating
Crystalline Quality	Thickness	XRD FWHM of(002)	XRD FWHM of(102)
	[1,2)μm	≤80arcsec	≤650arcsec
	[2,3)μm	≤100arcsec	≤550arcsec
	[3,4)μm	≤120arcsec	≤450arcsec
	[4,5)μm	≤160arcsec	≤400arcsec
Edge Exclusion Zone	<2mm
Surface Roughness	Ra<1.5nm(10*10μm)
Package	Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
