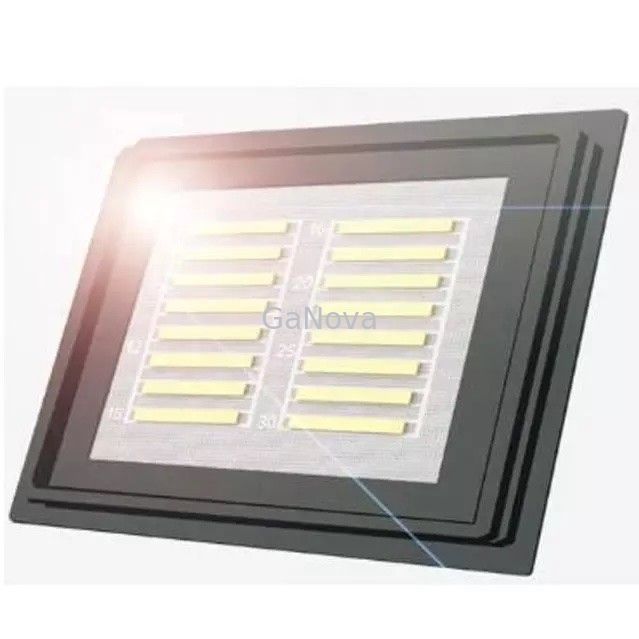

Threshold Current 0.5A Laser Diode Chip Power Conversion Efficiency 58%

Threshold Current 0.5A Laser Diode Chip Power Conversion Efficiency 58%

915nm 10W COS Diode Laser Chip On Submount Design

On-chip integration of laser diodes and photodetectors with silicon nanowire waveguides is demonstrated. Through flip-chip bonding of GaInNAs/GaAs laser diodes directly onto the silicon substrate, efficient heat dissipation was realized and characteristic temperatures as high as 132K were achieved. Spot-size converters for the laser-to-waveguide coupling were used, with efficiencies greater than 60%.

The photodetectors were fabricated by bonding of InGaAs/InP wafers directly to silicon waveguides and formation of metal-semiconductor-metal structures, giving responsivities as high as 0.74 A/W. Both laser diode and the photodetector were integrated with a single silicon waveguide to demonstrate a complete on-chip optical transmission link.
